MICROWAVE PRESS

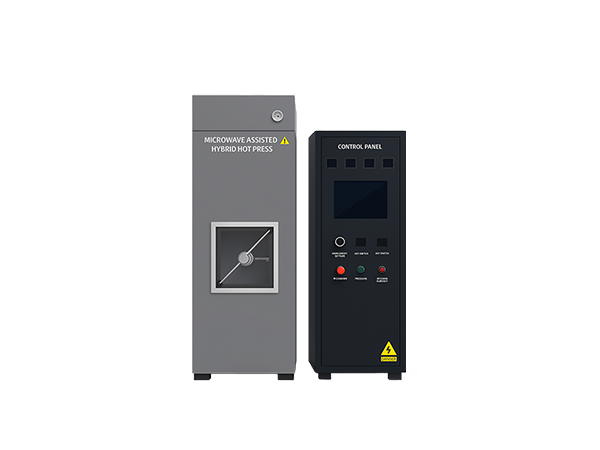

The VBCC Microwave Press System is an advanced high-temperature consolidation unit that integrates hybrid microwave and resistive heating with a precision hydraulic pressing mechanism. Designed to operate up to 1600°C with 10-ton pressing capacity, the system enables rapid densification and superior microstructural control of advanced ceramics, composites, and powder metallurgy materials. Its vacuum and controlled atmosphere capability ensures defect-free, high-density material synthesis for research and industrial applications.

Applications

Hot Press Sintering of Ceramics
Advanced Ceramic Component Fabrication
Powder Metallurgy Research
Composite Material Development
High-Density Material Consolidation
University and R&D Laboratories
Aerospace and Defence Material Research
Advanced Structural Material Processing
Energy Material Development

Technical Data

Heating Technology	Hybrid Microwave + Resistive Heating
Maximum Temperature	Up to 1600°C
Press Capacity	10 Ton Hydraulic System
Temperature Controller	Eurotherm PID Programmable System
Temperature Measurement	IR Pyrometer (Non-Contact)
Atmosphere	Vacuum / Controlled Gas
Chamber Type	Water-Cooled Vacuum Chamber
Pressure Control	Hydraulic System
Heating Control	Programmable Thermal Cycles
Control System	PID / PLC Based (Optional)
Cooling System	Water Cooled Furnace System
Power Supply	415V AC, 3 Phase, 50 Hz
Die System	Customizable Punch & Die Sets
Safety Features	Thermal, Pressure & Vacuum Interlocks

Optional Features

Touch Screen HMI Interface

SCADA Monitoring and Data Logging

PLC-Based Automation System

Mass Flow Controllers

Automatic Pressure Control System

Remote Monitoring Facility

Customized Die & Punch Sets

Additional Safety Interlocks

Advanced Process Recipe Control

Multi-Zone Heating Configuration
