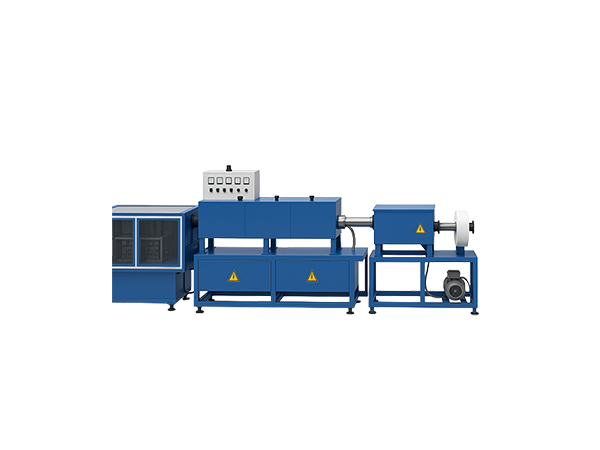

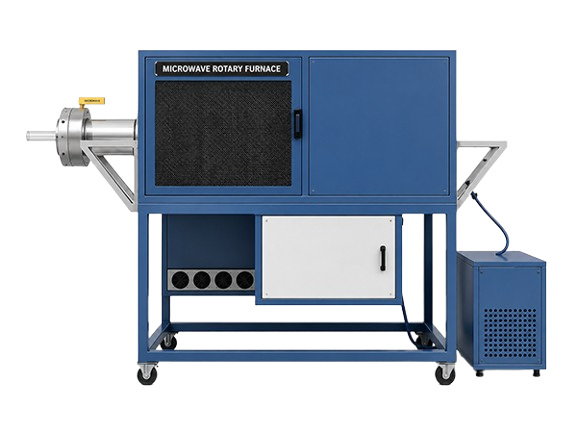

MICROWAVE ROTARY FURNACE

The VBCC Microwave Rotary Furnace is an advanced continuous processing system that integrates hybrid microwave and resistive heating technologies for efficient thermal treatment of materials up to 1000°C. Designed for continuous operation, the system ensures uniform heating, improved reaction efficiency, and controlled material residence time. With a rotating INCONEL reactor tube, screw feeding system, and precise atmosphere control, it is ideal for pyrolysis, calcination, and advanced material synthesis at pilot and industrial scale.

Applications

Continuous Pyrolysis Processing
Biomass and Waste Conversion
Carbon Material Production
Advanced Material Synthesis
Chemical Process Development
Catalyst Preparation
Research & Development Laboratories
Pilot Scale Manufacturing Units
Industrial Continuous Thermal Processing
Energy Material Development

Technical Data

Heating Technology	Hybrid Microwave + Resistive Heating
Maximum Temperature	Up to 1000°C
Reactor Material	INCONEL Alloy Tube
Temperature Controller	Eurotherm PID System
Drive System	Siemens Geared Motor with VFD
Feeding System	Screw Conveyor
Atmosphere	Vacuum / Inert Gas
Operation Mode	Continuous Processing
Control System	PID / PLC Based (Optional)
Gas Control	Optional Mass Flow Controllers
Power Supply	415V AC, 3 Phase, 50 Hz
Heating Zone	Rotating Uniform Heating Zone
Safety Features	Thermal, Mechanical & Gas Safety Interlocks

Optional Features

Touch Screen HMI Interface

SCADA Monitoring and Data Logging

PLC-Based Automation System

Mass Flow Controllers

Advanced Gas Mixing System

Remote Monitoring Facility

Customized Reactor Dimensions

Additional Safety Interlocks

Process Recipe Control System

Enhanced Cooling System
