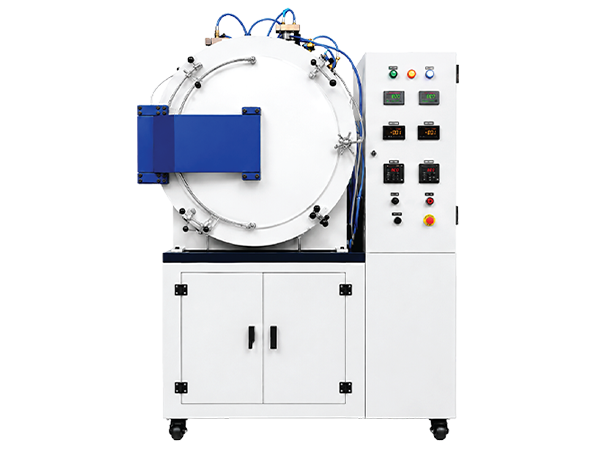

VACUUM BRAZING FURNACE

The VBCC Vacuum Brazing Furnace is a precision-controlled thermal processing system designed for high-quality brazing of metals under vacuum and controlled atmosphere conditions. Operating up to 1300°C, the system ensures clean, oxide-free joints with superior mechanical strength and surface finish. With uniform heating, controlled cooling cycles, and inert gas backfilling capability, the furnace is widely used in aerospace, automotive, heat exchanger, and precision component manufacturing industries.

Applications

Vacuum Brazing of Precision Components
Heat Exchanger Manufacturing
Aerospace Assemblies
Stainless Steel Component Joining
Tool and Die Manufacturing
Medical Device Fabrication
Automotive Component Production
Industrial Fabrication Processes
High-Strength Metal Joining
Advanced Engineering Applications

Technical Data

Maximum Temperature	Up to 1300°C
Operating Temperature	Ambient to 1300°C
Heating System	Resistance Heating Elements
Vacuum Level	High Vacuum Operation
Chamber Material	Stainless Steel Construction
Temperature Controller	PID / PLC Based System
Atmosphere	Vacuum / Inert Gas Backfilling
Cooling System	Controlled Water Cooling
Cooling Cycle	Programmable Controlled Cooling
Gas System	Inert Gas Backfill / Optional Quenching
Power Supply	415V AC, 3 Phase, 50 Hz
Heating Zone	Uniform Single / Multi-Zone Optional
Process Control	Fully Programmable Cycles
Safety Features	Over Temperature, Vacuum & Cooling Protection

Optional Features

SCADA Monitoring and Data Logging

Enhanced Cooling System

Gas Quenching Facility

Vacuum Automation System

Multiple Work Zone Configuration

Remote Monitoring Facility

Custom Chamber Sizes

Touch Screen HMI Interface

Advanced Process Recipe Control

Additional Safety Interlocks
