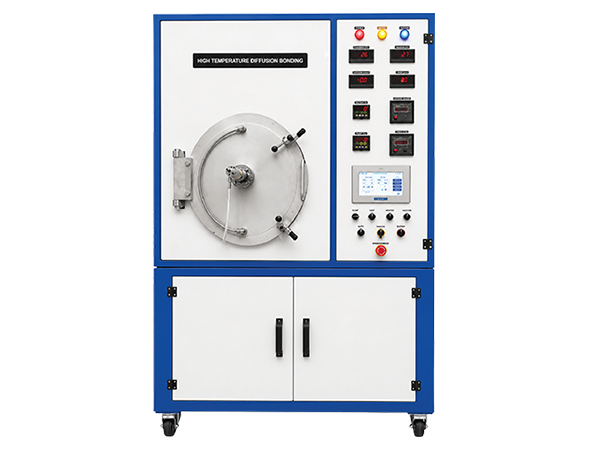

DIFFUSION BONDING FURNACE

The VBCC Diffusion Bonding Furnace is a high-precision vacuum thermal processing system designed for solid-state joining of metals and advanced materials. Operating at temperatures up to 2200°C under high vacuum conditions, the system enables atomic-level diffusion bonding without melting, ensuring superior joint strength and material integrity. Equipped with graphite heating elements, uniform heating zones, and precise PLC-based control, the furnace is ideal for aerospace, nuclear, and advanced manufacturing applications where high-reliability bonding of similar and dissimilar materials is required.

Applications

Diffusion Bonding of Metals
Aerospace Component Manufacturing
Titanium and Superalloy Bonding
Dissimilar Metal Joining
Heat Exchanger Fabrication
Nuclear Engineering Components
Advanced Manufacturing Processes
Research & Development Laboratories
High-Integrity Structural Joints
Defense and Strategic Applications

Technical Data

Maximum Temperature	Up to 2200°C
Operating Temperature	Ambient to 2200°C
Heating Elements	Graphite Heating Elements
Vacuum Level	High Vacuum Operation
Heating Zone	Uniform Hot Zone Design
Atmosphere	Vacuum / Inert Gas Backfilling
Temperature Controller	PLC-Based Programmable System
Chamber Construction	Water-Cooled Double Wall
Insulation	High-Grade Graphite Insulation
Pressure/Loading System	Optional Hydraulic Loading
Cooling System	Water Cooled
Power Supply	415V AC, 3 Phase, 50 Hz
Process Control	Fully Programmable Thermal Cycles
Working Area	Customized as per Requirement
Safety Features	Over Temperature, Vacuum & System Interlocks

Optional Features

Hydraulic Loading System

SCADA Monitoring and Data Logging

Advanced Vacuum Automation System

Precision Gas Flow Control System

Custom Bonding Fixtures and Tooling

Multi-Zone Heating Configuration

Remote Access and Monitoring

Touch Screen HMI Interface

Process Recipe Management System

Enhanced Safety Interlocks
